WHZY系列直線自振源是我新鄉威猛公司開發研制的新型國家專利產品,該產品是在振動電機基礎上發展的一種新結構原理振源，兩電機連為一體,作直線運動,具有性能可靠、占用空間小、維護簡單、使用壽命長等優點,是中小型號振動設備的理想振動源.
WHZY系列直線自振源型號說明

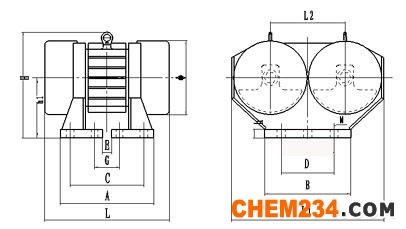

| 型號 | 激振力(KN) | 功率(KW) | 電流(A) | 主要結構尺寸 | ||||||||||||||||
| L | L1 | L2 | H | A | B | C | D | E | G | h | h1 | ф | n-ф | 重量（KG） | ||||||
| WHZY | 2X5-4 | 2X5 | 2X0.4 | 2X1.15 | 340 | 388 | 190 | 280 | 182 | 240 | 104 | 180 | 52 | 25 | 175 | 170 | 4-18 | 64 | ||
| WHZY | 2X8-4 | 2X8 | 2X0.75 | 2X1.84 | 380 | 390 | 190 | 280 | 197 | 240 | 119 | 180 | 70 | 25 | 175 | 175 | 4-20 | 80 | ||
| WHZY | 2X17-4 | 2X17 | 2X1.5 | 2X2.7 | 460 | 430 | 220 | 290 | 237 | 240 | 159 | 180 | 103 | 25 | 180 | 210 | 4-22 | 115 | ||
| WHZY | 2X20-4 | 2X20 | 2X2.0 | 2X4.1 | 490 | 524 | 285 | 355 | 366 | 310 | 316 | 235 | 195 | 26 | 205 | 256 | 4-28 | 184 | ||
| WHZY | 2X30-4 | 2X30 | 2X2.5 | 2X5.75 | 490 | 524 | 285 | 355 | 366 | 310 | 316 | 235 | 195 | 26 | 205 | 256 | 4-28 | 194 | ||
| WHZY | 2X8-6 | 2X8 | 2X0.75 | 2X1.84 | , 440 | 430 | 220 | 285 | 211 | 240 | 131 | 180 | 83 | 25 | 180 | 210 | 4-22 | 120 | ||
| WHZY | 2X12-6 | 2X12 | 2X1.0 | 2X2.1 | 630 | 430 | 220 | 285 | 231 | 240 | 151 | 180 | 103 | 25 | 180 | 210 | 4-22 | 140 | ||
| WHZY | 2X20-6 | 2X20 | 2X2.0 | 2X4.1 | 451 | 556 | 306 | 405 | 372 | 300 | 306 | 230 | 150 | 30 | 255 | 300 | 4-26 | 210 | ||
| WHZY | 2X30-6 | 2X30 | 2X2.5 | 2X5.75 | 490 | 556 | 306 | 405 | 372 | 300 | 306 | 230 | 150 | 30 | 255 | 300 | 4-26 | 242 | ||
| WHZY | 2X50-6A | 2X50 | 2X3.7 | 2X7.4 | 625 | 656 | 340 | 450 | 435 | 400 | 375 | 268 | 103 | 161 | 30 | 285 | 330 | 8-32 | 394 | |
| WHZY | 2X75-6 | 2X75 | 2X5.5 | 2X11 | 865 | 736 | 368 | 470 | 515 | 400 | 451 | 268 | 171 | 231 | 35 | 285 | 330 | 8-32 | 560 | |
| WHZY | 2X100-6 | 2X100 | 2X7.5 | 2X17 | 790 | 810 | 410 | 560 | 500 | 400 | 441 | 268 | 140 | 200 | 40 | 328 | 376 | 8-32 | 720 | |
| WHZY | 2X150-6 | 2X150 | 2X11 | 2X25 | 873 | 810 | 410 | 560 | 555 | 400 | 491 | 268 | 195 | 251 | 40 | 328 | 376 | 8-32 | 810 | |
